Relay Tripping Curves PRO2

The software for graphing the setting curves of the ANSI 50/51 and ANSI 50N/51N functions of electrical protection relays.

* Features:

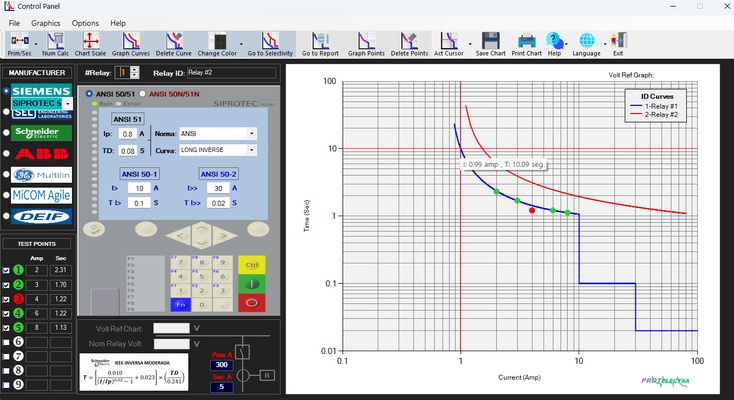

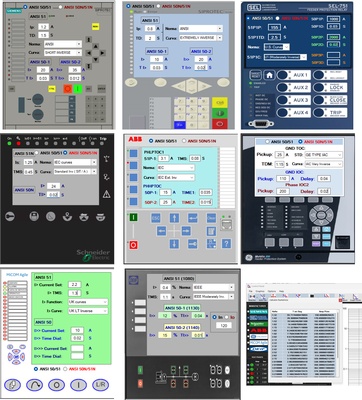

Graph up to 30 curves of ANSI 50/51 and ANSI 50N/51N function settings.

View numerical calculations of the graphed curve and print the results.

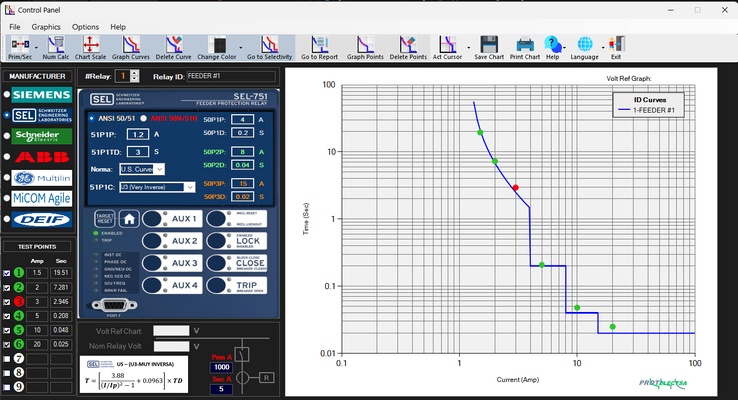

Graph the protection relay trip points and compare with the setting inverse curve.

Activate a cursor to show the Amp and Time values along a graphed curve.

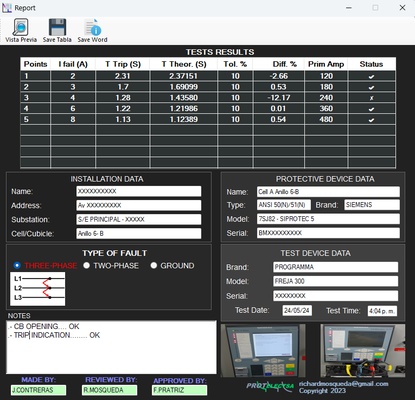

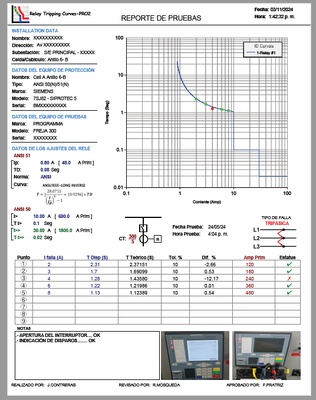

Create a report that includes the relay data, the trip verification table, the curve graph and include images.

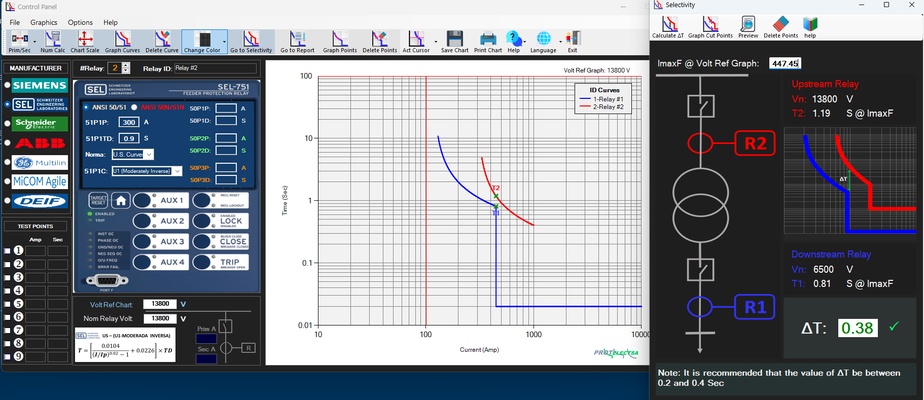

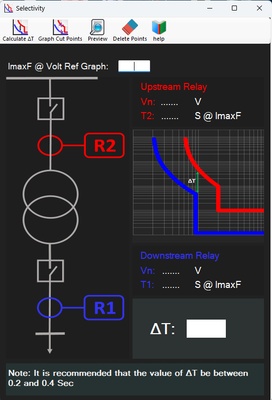

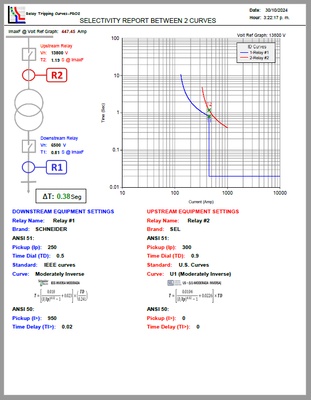

Calculate and optimize the selectivity between 2 graphed curves.

Switch between secondary values to primary values.

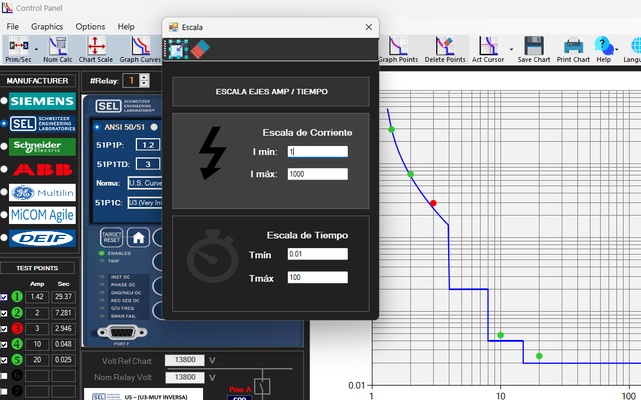

Change the scale of the Log-Log Chart.

Change the background color of the Log-Log Chart.

Graph curves at different voltage levels.

Change language: Spanish and English.

Customize the Logo of the reports (Optional).

Information about Relay Tripping Curves-PRO2

License Trial
Op. System Windows
Category Education
Language English 1 more
Author PROTELECTSA
permission icon Permissions Not applicable
Date 2026-06-02
Size 29 MB
File type ZIP
